Bench Test Flight List

Investigated Flight Itinerary

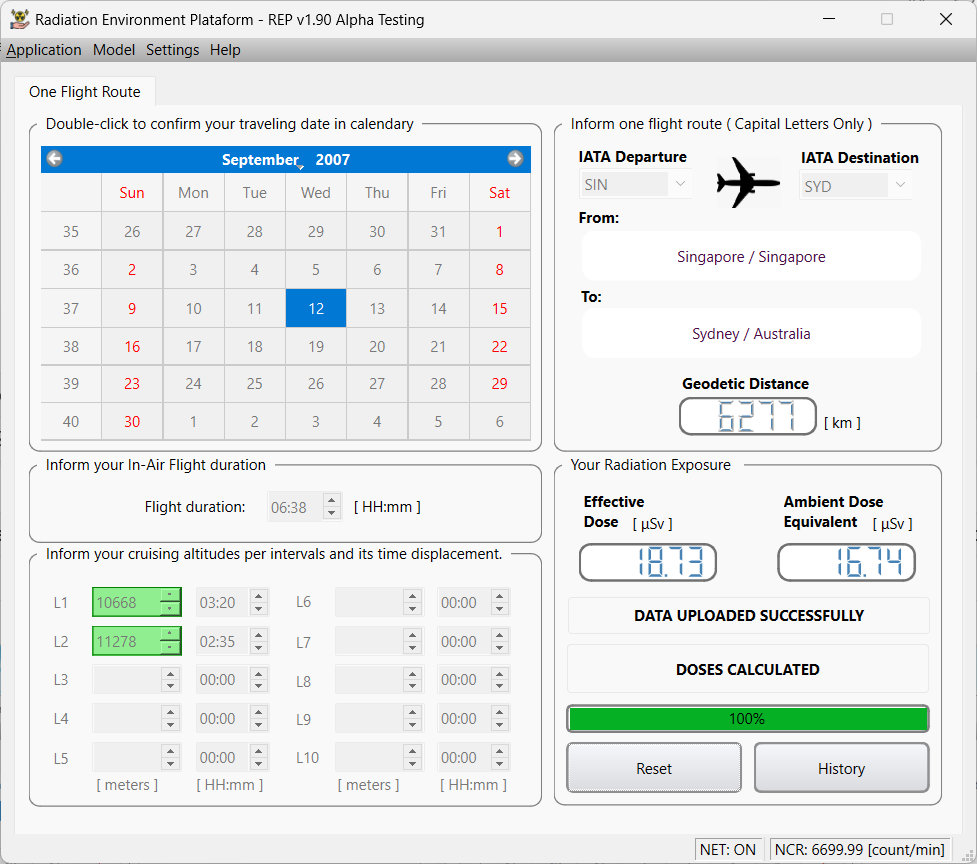

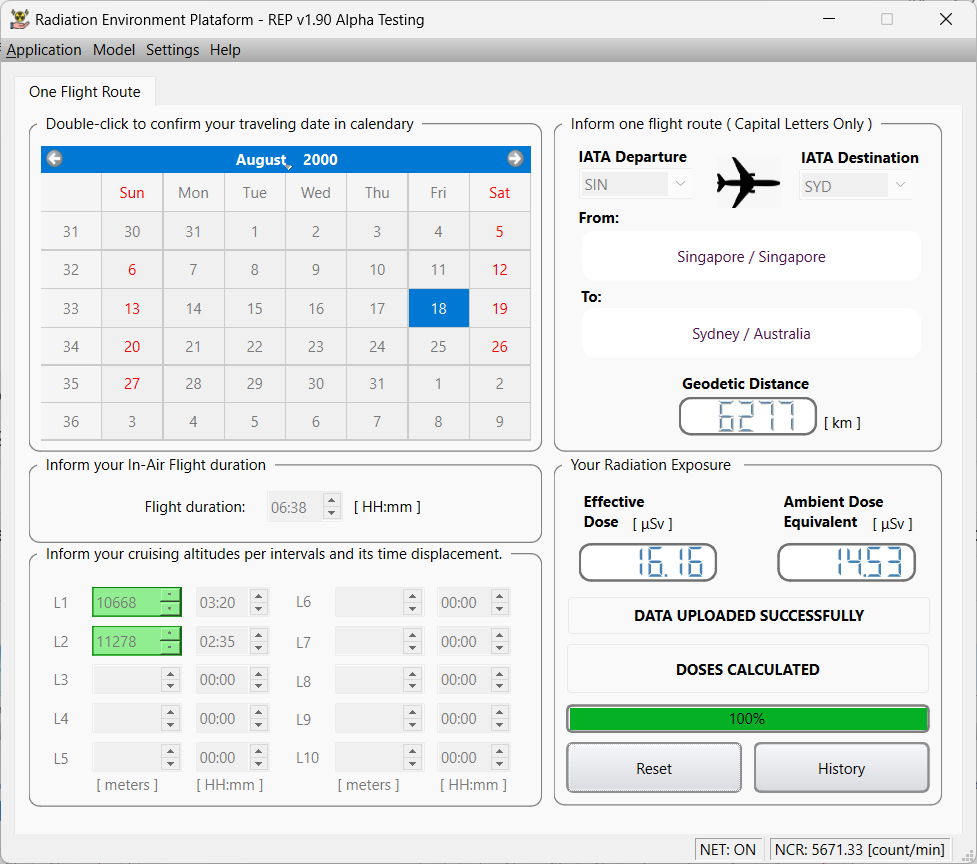

Flight 1: (ICAO) WSSS to YSSY / (IATA) SIN to SYD

Route Distance (Km) TOC (Altitude) TOC (Time) TOD (Altitude) TOD (Start Time) TOD (End Time) TOD (Duration)
WSSS to YSSY 6277 350 00:20 370 06:15 06:38 00:23
Altitude (meters) Start Time End Time Total Duration
10668 00:20 03:40 3 hours 20 minutes
11278 03:40 06:15 2 hours 35 minutes
Image 1
(A) Solar Minimum
Image 2
(B) Solar Maximum
DOSE (μSv) SOLAR PERIOD REP 1.90 CARI-7A AVIDOS MAIRE PCAIRE SIEVERT JISCARD Mediana
Effective Minimum 18.73 - - - - - - -
H*(10) Minimum 16.74 - - - - - - -
Effective Maximum 16.16 - - - - - - -
H*(10) Maximum 14.53 - - - - - - -
Comparison of Codes Assessing Radiation Exposure

Flight 2: YSSY to VTBD / SYD to DMK

Route Distance (Km) TOC (Altitude) TOC (Time) TOD (Altitude) TOD (Start Time) TOD (End Time) TOD (Duration)
YSSY to VTBD 7520 300 00:19 360 08:32 08:49 00:17
Altitude (meters) Start Time End Time Total Duration
9144 00:19 00:28 9 minutes
7925 00:28 01:20 52 minutes
9144 01:20 01:45 25 minutes
10363 01:45 04:04 2 hours 19 minutes
10973 04:04 06:24 2 hours 20 minutes
10668 06:24 07:46 1 hour 22 minutes
10973 07:46 08:32 46 minutes
Image 1
(A) Solar Minimum
Image 2
(B) Solar Maximum
DOSE (μSv) SOLAR PERIOD REP 1.90 CARI-7A AVIDOS MAIRE PCAIRE SIEVERT JISCARD Mediana
Effective Minimum 15.40 - - - - - - -
H*(10) Minimum 14.38 - - - - - - -
Effective Maximum 13.90 - - - - - - -
H*(10) Maximum 13.00 - - - - - - -
Comparison of Codes Assessing Radiation Exposure

Flight 3: YSSY to VHHH / SYD to HKG

Route Distance (Km) TOC (Altitude) TOC (Time) TOD (Altitude) TOD (Start Time) TOD (End Time) TOD (Duration)
YSSY to VHHH 7365 300 00:21 390 08:12 08:42 00:30
Altitude (meters) Start Time End Time Total Duration
9144 00:21 01:58 1 hour 37 minutes
10363 01:58 02:36 38 minutes
10973 02:36 04:52 2 hours 16 minutes
11582 04:52 05:41 49 minutes
11887 05:41 08:12 2 hours 31 minutes
Image 1
(A) Solar Minimum
Image 2
(B) Solar Maximum
DOSE (μSv) SOLAR PERIOD REP 1.90 CARI-7A AVIDOS MAIRE PCAIRE SIEVERT JISCARD Mediana
Effective Minimum 16.59 15.99 18.20 19.89 26.40 21.50 15.30 -
H*(10) Minimum 15.32 - - - - - - -
Effective Maximum 15.08 - - - - - - -
H*(10) Maximum 13.95 - - - - - - -
Comparison of Codes Assessing Radiation Exposure

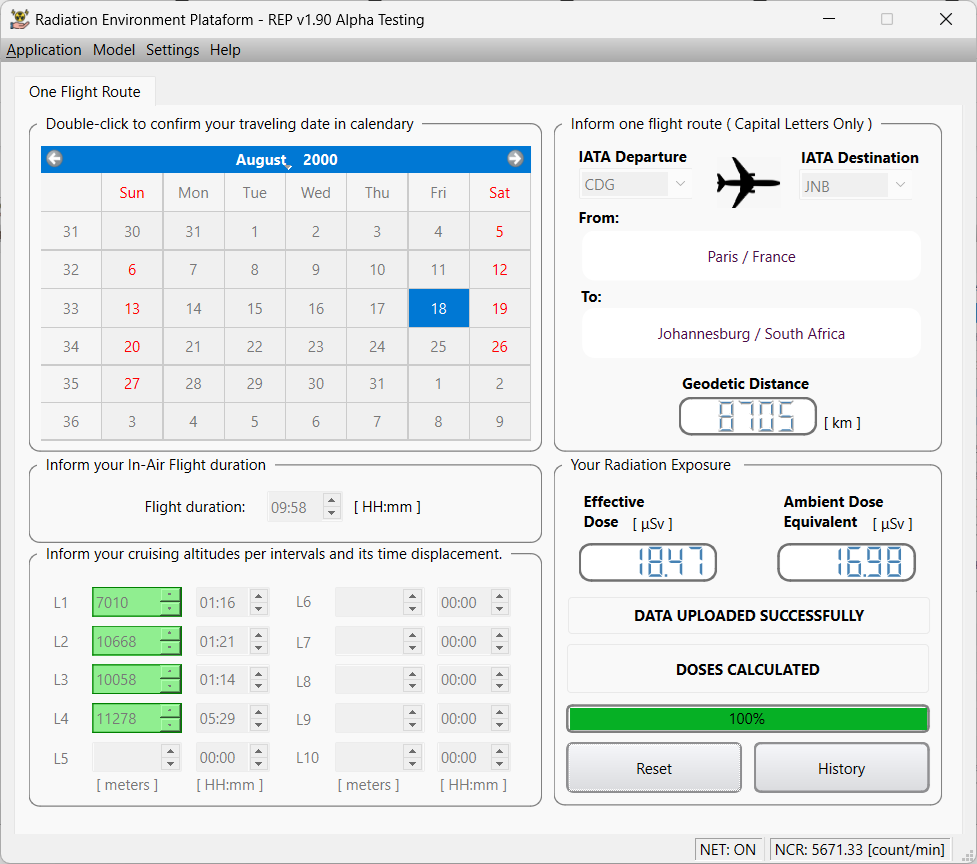

Flight 4: LFPG to FAJS / CDG to JNB

Route Distance (Km) TOC (Altitude) TOC (Time) TOD (Altitude) TOD (Start Time) TOD (End Time) TOD (Duration)
LFPG to FAJS 8705 230 00:16 370 09:36 09:58 00:22
Altitude (meters) Start Time End Time Total Duration
7010 00:16 01:32 1 hour 16 minutes
10668 01:32 02:53 1 hour 21 minutes
10058 02:53 04:07 1 hours 14 minutes
11278 04:07 09:36 5 hours 29 minutes
Image 1

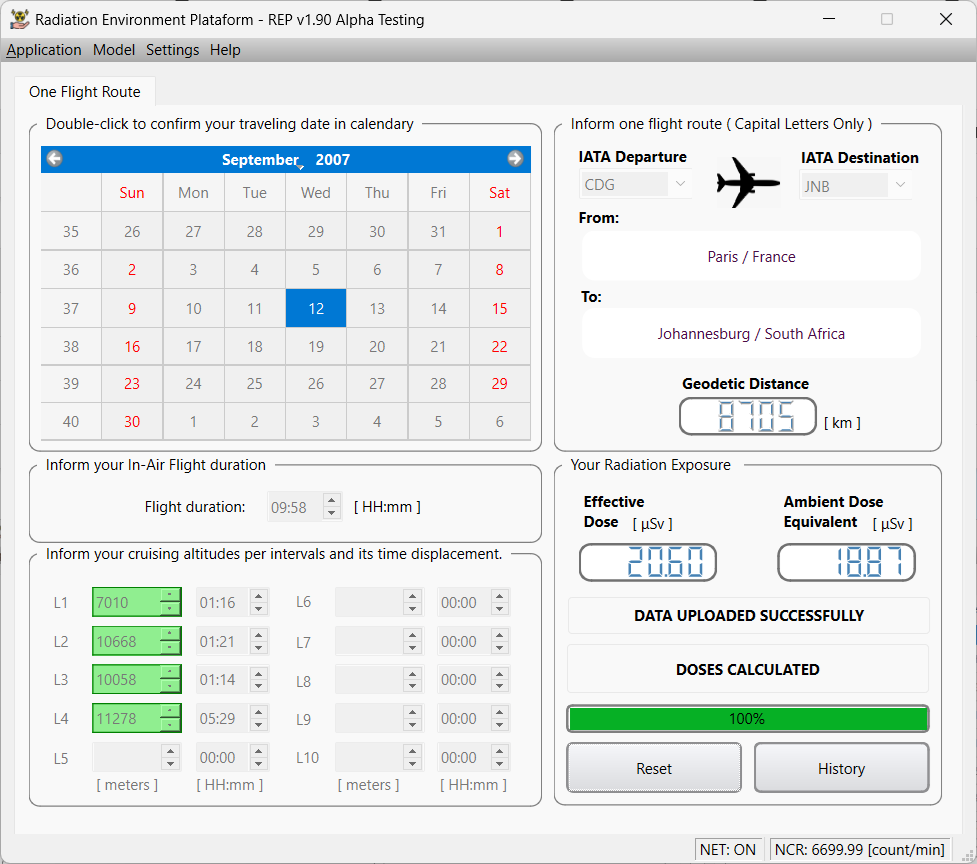

(A) Solar Minimum
Image 2
(B) Solar Maximum
DOSE (μSv) SOLAR PERIOD REP 1.90 CARI-7A AVIDOS MAIRE PCAIRE SIEVERT JISCARD Mediana
Effective Minimum 20.60 - - - - - - -
H*(10) Minimum 18.87 - - - - - - -
Effective Maximum 18.47 - - - - - - -
H*(10) Maximum 16.98 - - - - - - -
Comparison of Codes Assessing Radiation Exposure

Flight 5: NZAA to WSSS / AKL to SIN

Route Distance (Km) TOC (Altitude) TOC (Time) TOD (Altitude) TOD (Start Time) TOD (End Time) TOD (Duration)
NZAA to WSSS 8391 310 00:17 370 09:17 09:47 00:30
Altitude (meters) Start Time End Time Total Duration
9449 00:17 01:30 1 hour 13 minutes
9754 01:30 03:44 2 hours 14 minutes
10363 03:44 05:21 1 hour 37 minutes
10668 05:21 06:35 1 hours 14 minutes
10973 06:35 09:17 2 hours 42 minutes
Image 1

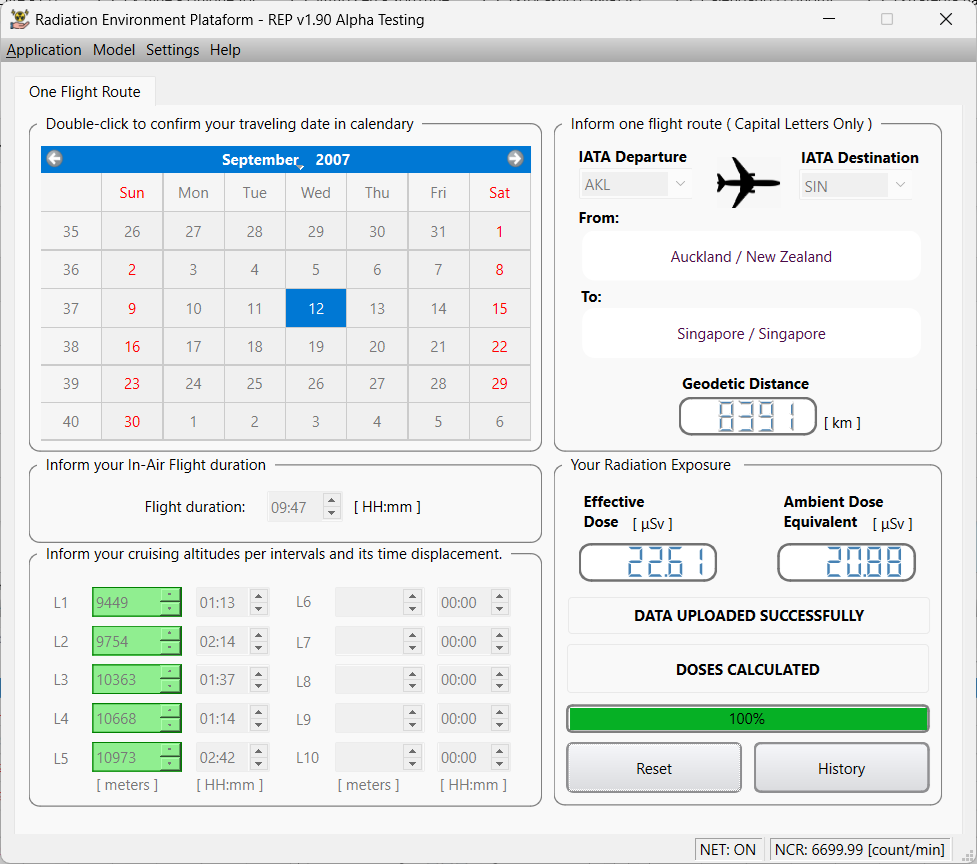

(A) Solar Minimum

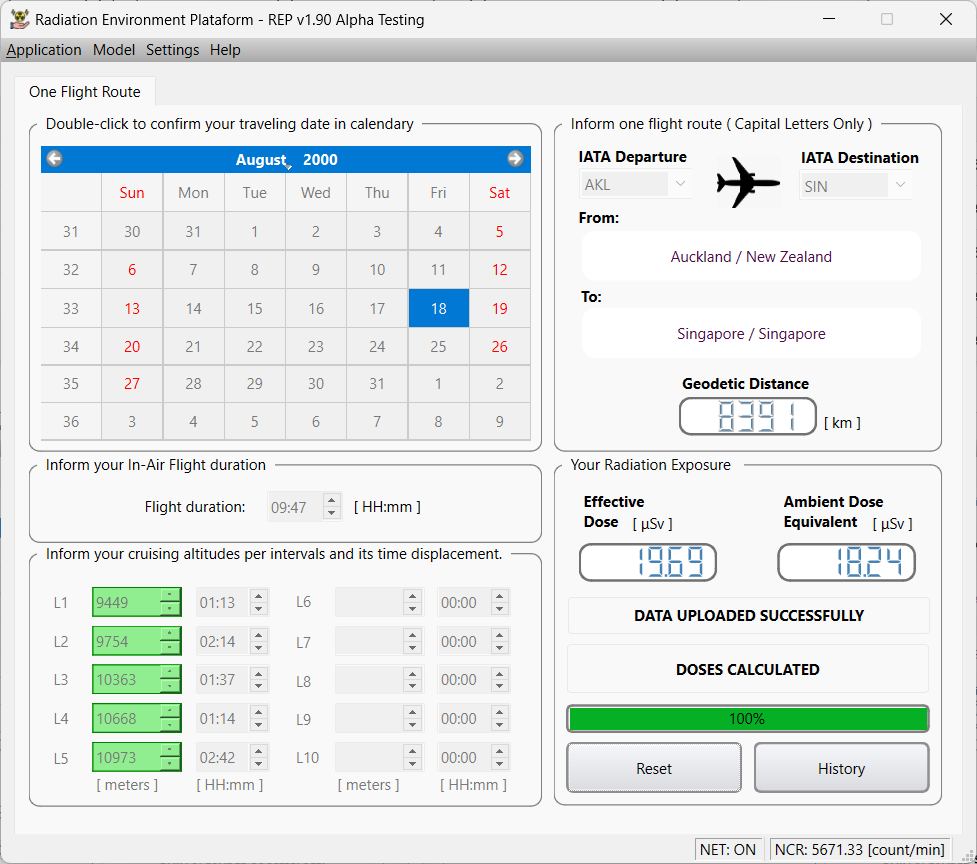

Image 2
(B) Solar Maximum
DOSE (μSv) SOLAR PERIOD REP 1.90 CARI-7A AVIDOS MAIRE PCAIRE SIEVERT JISCARD Mediana
Effective Minimum 22.61 - - - - - - -
H*(10) Minimum 20.88 - - - - - - -
Effective Maximum 19.69 - - - - - - -
H*(10) Maximum 18.24 - - - - - - -
Comparison of Codes Assessing Radiation Exposure

Flight 6: FAJS to LFPG / JNB to CDG

Route Distance (Km) TOC (Altitude) TOC (Time) TOD (Altitude) TOD (Start Time) TOD (End Time) TOD (Duration)
FAJS to LFPG 8705 280 00:16 380 09:41 10:07 00:26
Altitude (meters) Start Time End Time Total Duration
8534 00:16 01:19 1 hour 3 minutes
9449 01:19 03:56 2 hour 37 minutes
10668 03:56 08:40 4 hour 44 minutes
11582 08:40 09:41 1 hour 1 minute
Image 1
(A) Solar Minimum
Image 2
(B) Solar Maximum
DOSE (μSv) SOLAR PERIOD REP 1.90 CARI-7A AVIDOS MAIRE PCAIRE SIEVERT JISCARD Mediana
Effective Minimum 23.56 - - - - - - -
H*(10) Minimum 21.15 - - - - - - -
Effective Maximum 20.38 - - - - - - -
H*(10) Maximum 18.44 - - - - - - -
Comparison of Codes Assessing Radiation Exposure

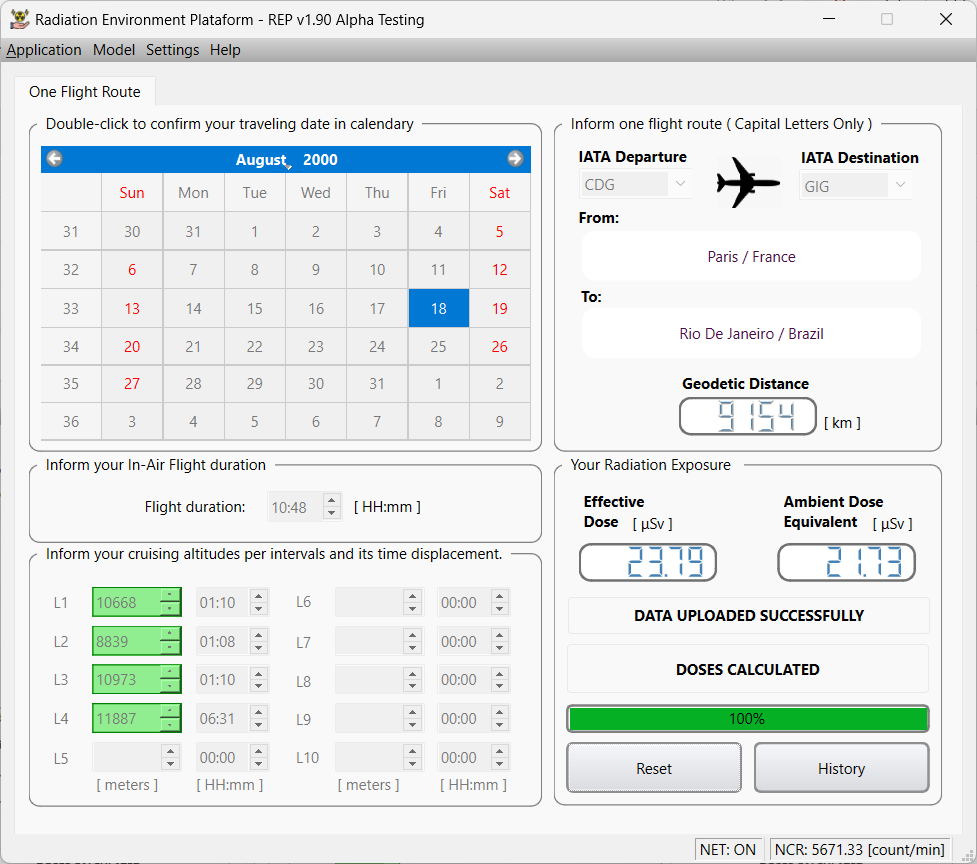

Flight 7: LFPG to SBGL / CDG to GIG

Route Distance (Km) TOC (Altitude) TOC (Time) TOD (Altitude) TOD (Start Time) TOD (End Time) TOD (Duration)
LFPG to SBGL 9154 350 00:25 370 10:24 10:48 00:24
Altitude (meters) Start Time End Time Total Duration
10668 00:25 01:35 1 hour 10 minutes
8839 01:35 02:43 1 hour 8 minutes
10973 02:43 03:53 1 hour 10 minutes
11887 03:53 10:24 6 hours 31 minutes
Image 1

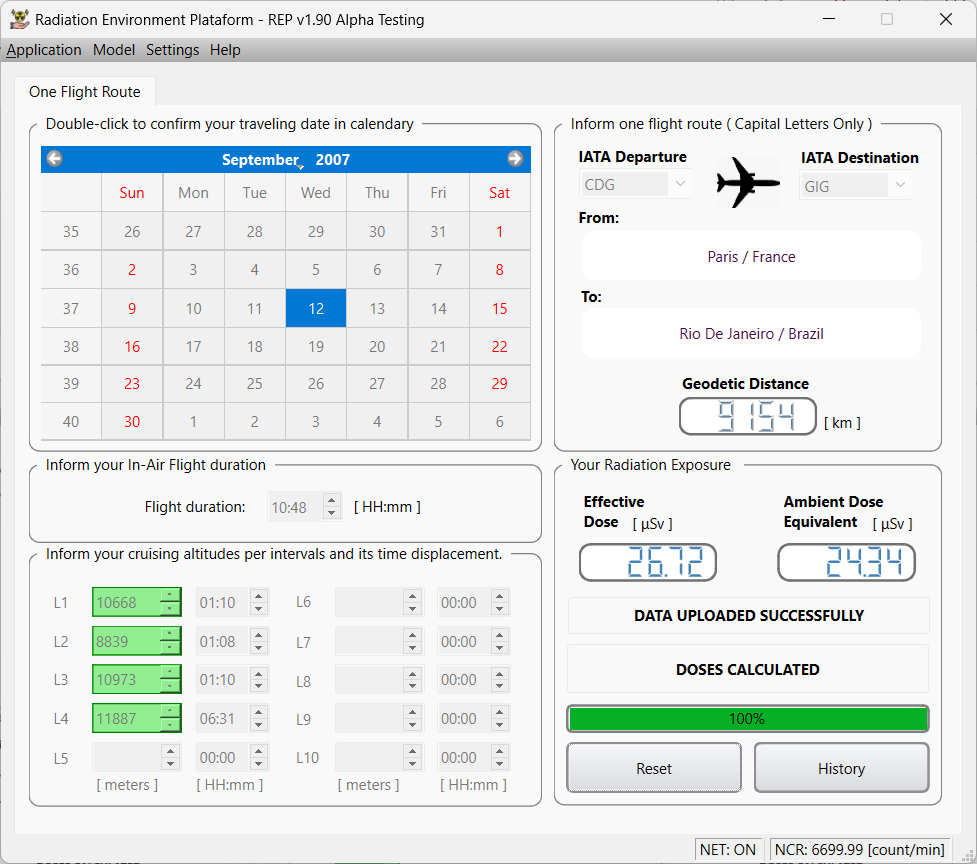

(A) Solar Minimum
Image 2
(B) Solar Maximum
DOSE (μSv) SOLAR PERIOD REP 1.90 CARI-7A AVIDOS MAIRE PCAIRE SIEVERT JISCARD Mediana
Effective Minimum 26.72 - - - - - - -
H*(10) Minimum 24.34 - - - - - - -
Effective Maximum 23.79 - - - - - - -
H*(10) Maximum 21.73 - - - - - - -
Comparison of Codes Assessing Radiation Exposure

Flight 8: WSSS to NZAA / SIN to AKL

Route Distance (Km) TOC (Altitude) TOC (Time) TOD (Altitude) TOD (Start Time) TOD (End Time) TOD (Duration)
WSSS to NZAA 8391 310 00:20 370 08:43 09:12 00:29
Altitude (meters) Start Time End Time Total Duration
9449 00:20 01:43 1 hour 23 minutes
10058 01:43 03:41 1 hour 58 minutes
10668 03:41 06:40 2 hours 59 minutes
11278 06:40 08:43 2 hours 3 minutes
Image 1
(A) Solar Minimum

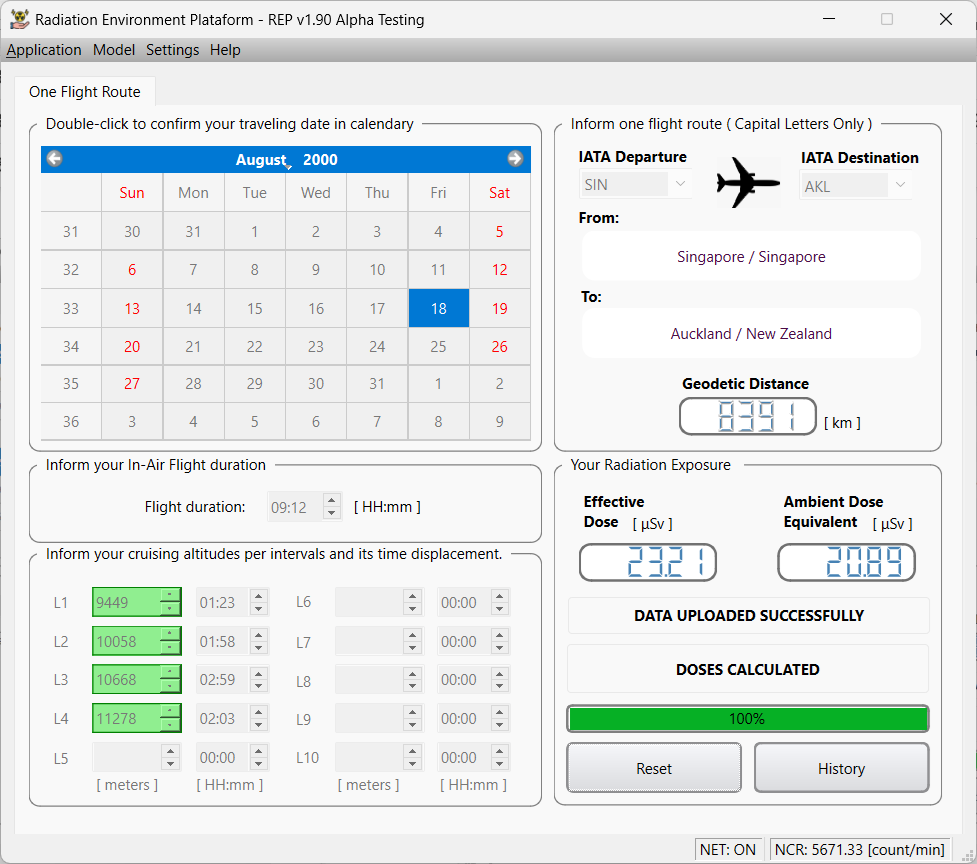

Image 2
(B) Solar Maximum
DOSE (μSv) SOLAR PERIOD REP 1.90 CARI-7A AVIDOS MAIRE PCAIRE SIEVERT JISCARD Mediana
Effective Minimum 27.49 - - - - - - -
H*(10) Minimum 24.58 - - - - - - -
Effective Maximum 23.21 - - - - - - -
H*(10) Maximum 20.89 - - - - - - -
Comparison of Codes Assessing Radiation Exposure

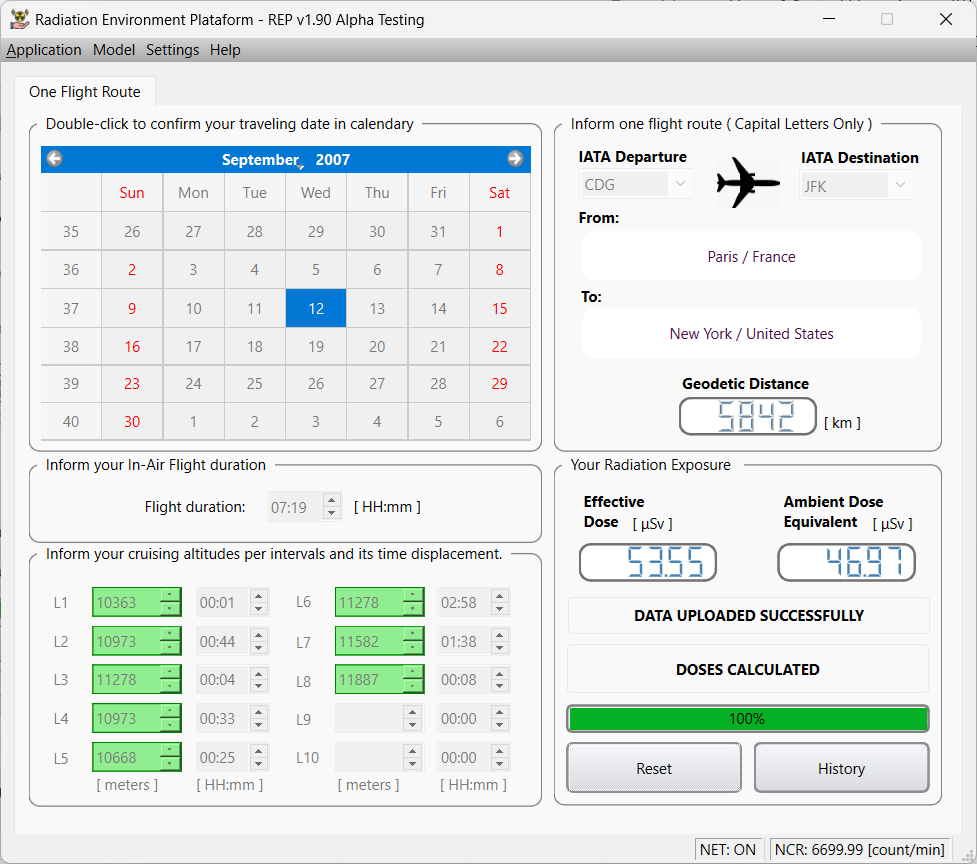

Flight 9: LFPG to KJFK / CDG to JFK

Route Distance (Km) TOC (Altitude) TOC (Time) TOD (Altitude) TOD (Start Time) TOD (End Time) TOD (Duration)
LFPG to KJFK 5842 340 00:23 390 06:54 07:19 00:25
Altitude (meters) Start Time End Time Total Duration
10363 00:23 00:24 1 minute
10973 00:24 01:08 44 minutes
11278 01:08 01:12 4 minutes
10973 01:12 01:45 33 minutes
10668 01:45 02:10 25 minutes
11278 02:10 05:08 2 hours 58 minutes
11582 05:08 06:46 1 hour 38 minutes
11887 06:46 06:54 8 minutes
Image 1
(A) Solar Minimum

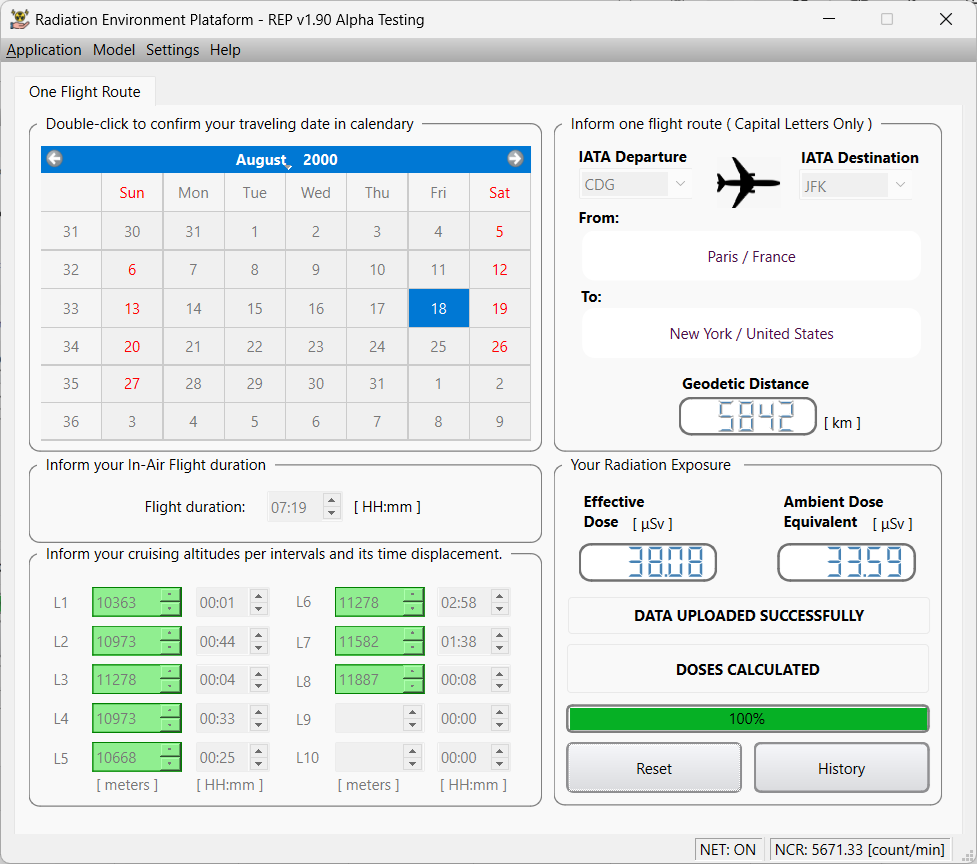

Image 2
(B) Solar Maximum
DOSE (μSv) SOLAR PERIOD REP 1.90 CARI-7A AVIDOS MAIRE PCAIRE SIEVERT JISCARD Mediana
Effective Minimum 53.55 - - - - - - -
H*(10) Minimum 46.97 - - - - - - -
Effective Maximum 38.08 - - - - - - -
H*(10) Maximum 33.59 - - - - - - -
Comparison of Codes Assessing Radiation Exposure

Flight 10: KJFK to LFPG / JFK to CDG

Route Distance (Km) TOC (Altitude) TOC (Time) TOD (Altitude) TOD (Start Time) TOD (End Time) TOD (Duration)
KJFK to LFPG 5842 330 00:20 410 05:55 06:14 00:19
Altitude (meters) Start Time End Time Total Duration
10058 00:20 00:50 30 minutes
11278 00:50 02:25 1 hour 35 minutes
11582 02:25 03:05 40 minutes
11887 03:05 04:20 1 hour 15 minutes
12192 04:20 05:04 44 minutes
12497 05:04 05:53 49 minutes
7620 05:53 05:55 2 minutes
Image 1
(A) Solar Minimum

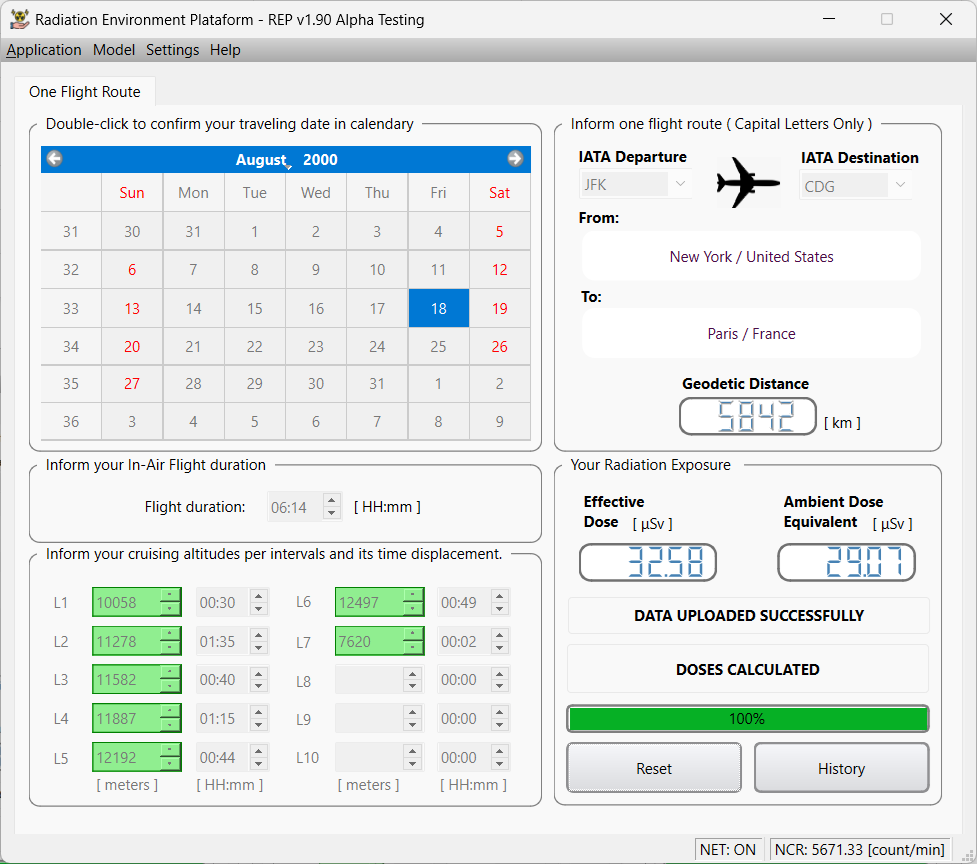

Image 2
(B) Solar Maximum
DOSE (μSv) SOLAR PERIOD REP 1.90 CARI-7A AVIDOS MAIRE PCAIRE SIEVERT JISCARD Mediana
Effective Minimum 46.42 - - - - - - -
H*(10) Minimum 41.26 - - - - - - -
Effective Maximum 32.58 - - - - - - -
H*(10) Maximum 29.07 - - - - - - -
Comparison of Codes Assessing Radiation Exposure

Flight 11: LFPG to KIAD / CDG to IAD

Route Distance (Km) TOC (Altitude) TOC (Time) TOD (Altitude) TOD (Start Time) TOD (End Time) TOD (Duration)
LFPG to KIAD 6206 330 00:20 390 07:21 07:43 00:22
Altitude (meters) Start Time End Time Total Duration
10058 00:20 00:26 6 minutes
10363 00:26 00:55 29 minutes
10973 00:55 01:34 39 minutes
11582 01:34 04:42 3 hours 8 minutes
11887 04:42 05:12 30 minutes
12192 05:12 06:42 1 hour 30 minute
11887 06:42 07:21 39 minutes
Image 1
(A) Solar Minimum
Image 2
(B) Solar Maximum
DOSE (μSv) SOLAR PERIOD REP 1.90 CARI-7A AVIDOS MAIRE PCAIRE SIEVERT JISCARD Mediana
Effective Minimum 63.42 - - - - - - -
H*(10) Minimum 55.56 - - - - - - -
Effective Maximum 43.97 - - - - - - -
H*(10) Maximum 38.71 - - - - - - -
Comparison of Codes Assessing Radiation Exposure

Flight 12: LFPG to RJAA / CDG to NRT

Route Distance (Km) TOC (Altitude) TOC (Time) TOD (Altitude) TOD (Start Time) TOD (End Time) TOD (Duration)
LFPG to RJAA 9729 310 00:20 370 10:14 10:40 00:26
Altitude (meters) Start Time End Time Total Duration
9449 00:20 01:40 1 hour 20 minutes
10058 01:40 02:51 1 hour 11 minutes
10089 02:51 07:33 4 hours 42 minutes
11095 07:33 09:53 2 hours 20 minutes
11278 09:53 10:14 21 minutes
Image 1
(A) Solar Minimum
Image 2
(B) Solar Maximum
DOSE (μSv) SOLAR PERIOD REP 1.90 CARI-7A AVIDOS MAIRE PCAIRE SIEVERT JISCARD Mediana
Effective Minimum 53.96 - - - - - - -
H*(10) Minimum 49.50 - - - - - - -
Effective Maximum 38.98 - - - - - - -
H*(10) Maximum 35.69 - - - - - - -
Comparison of Codes Assessing Radiation Exposure

Flight 13: RJAA to LFPG / NRT to CDG

Route Distance (Km) TOC (Altitude) TOC (Time) TOD (Altitude) TOD (Start Time) TOD (End Time) TOD (Duration)
RJAA to LFPG 9729 250 00:21 380 12:24 12:49 00:25
Altitude (meters) Start Time End Time Total Duration
7620 00:21 01:35 1 hour 14 minutes
9601 01:35 05:59 4 hours 24 minutes
10607 05:59 10:34 4 hours 35 minutes
10973 10:34 11:42 1 hour 8 minutes
11278 11:42 12:24 42 minutes
Image 1
(A) Solar Minimum
Image 2
(B) Solar Maximum
DOSE (μSv) SOLAR PERIOD REP 1.90 CARI-7A AVIDOS MAIRE PCAIRE SIEVERT JISCARD Mediana
Effective Minimum 69.77 - - - - - - -
H*(10) Minimum 63.19 - - - - - - -
Effective Maximum 49.30 - - - - - - -
H*(10) Maximum 44.70 - - - - - - -
Comparison of Codes Assessing Radiation Exposure

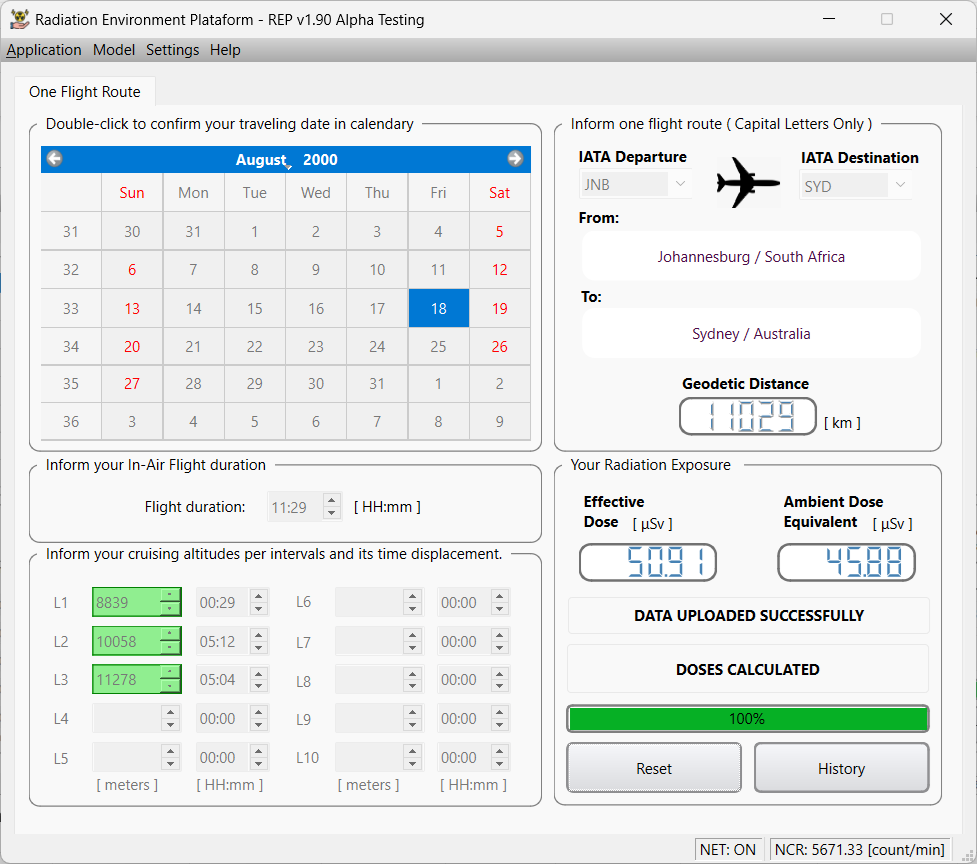

Flight 14: FAJS to YSSY / JNB to SYD

Route Distance (Km) TOC (Altitude) TOC (Time) TOD (Altitude) TOD (Start Time) TOD (End Time) TOD (Duration)
FAJS to YSSY 11029 290 00:19 370 11:04 11:29 00:25
Altitude (meters) Start Time End Time Total Duration
8839 00:19 00:48 29 minutes
10058 00:48 06:00 5 hours 12 minutes
11278 06:00 11:04 5 hours 4 minutes

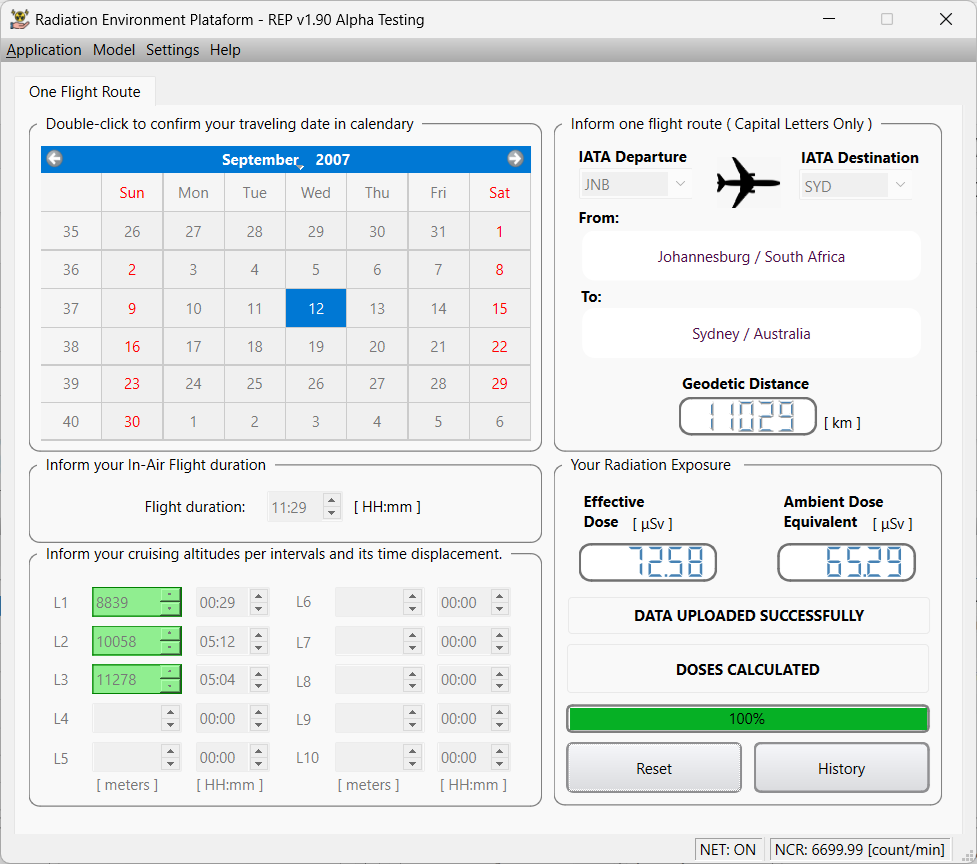

Image 1
(A) Solar Minimum
Image 2
(B) Solar Maximum
DOSE (μSv) SOLAR PERIOD REP 1.90 CARI-7A AVIDOS MAIRE PCAIRE SIEVERT JISCARD Mediana
Effective Minimum 72.58 - - - - - - -
H*(10) Minimum 65.29 - - - - - - -
Effective Maximum 50.91 - - - - - - -
H*(10) Maximum 45.88 - - - - - - -
Comparison of Codes Assessing Radiation Exposure

Flight 15: KSFO to LFPG / SFO to CDG

Route Distance (Km) TOC (Altitude) TOC (Time) TOD (Altitude) TOD (Start Time) TOD (End Time) TOD (Duration)
KSFO to LFPG 8979 300 00:22 390 08:56 09:15 00:19
Altitude (meters) Start Time End Time Total Duration
9144 00:22 00:24 2 minutes
10058 00:24 01:09 45 minutes
11278 01:09 05:15 4 hours 6 minutes
11887 05:15 08:52 3 hours 37 minutes
7620 08:52 08:56 4 minutes

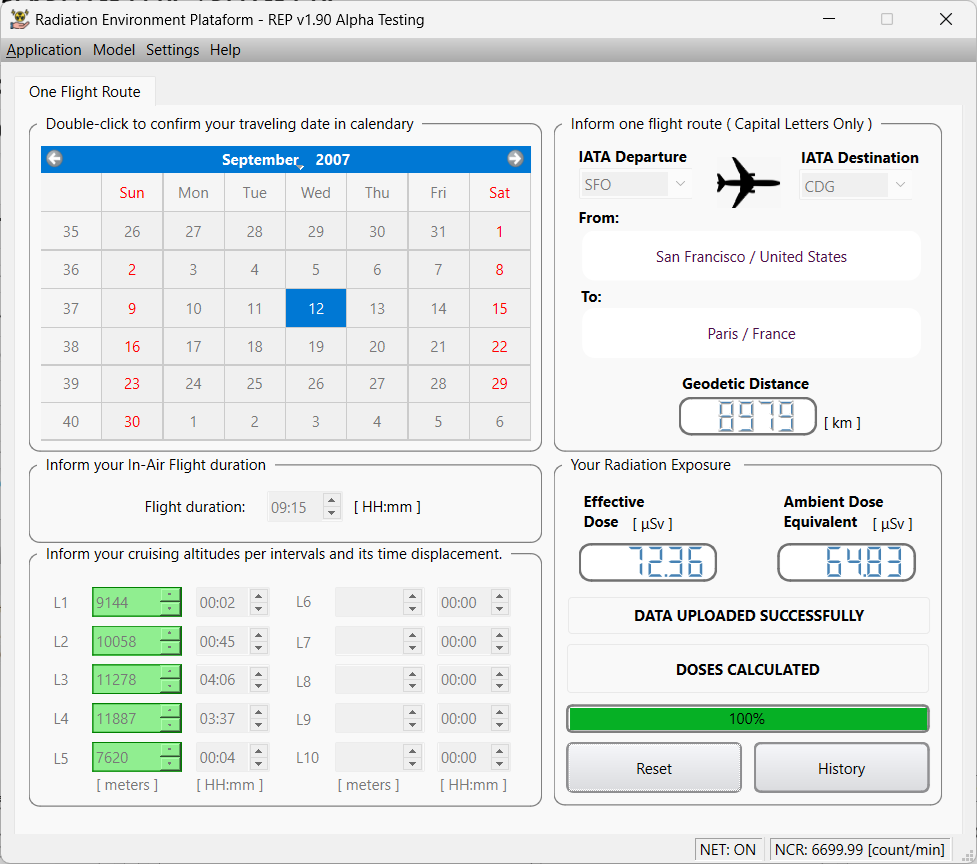

Image 1
(A) Solar Minimum

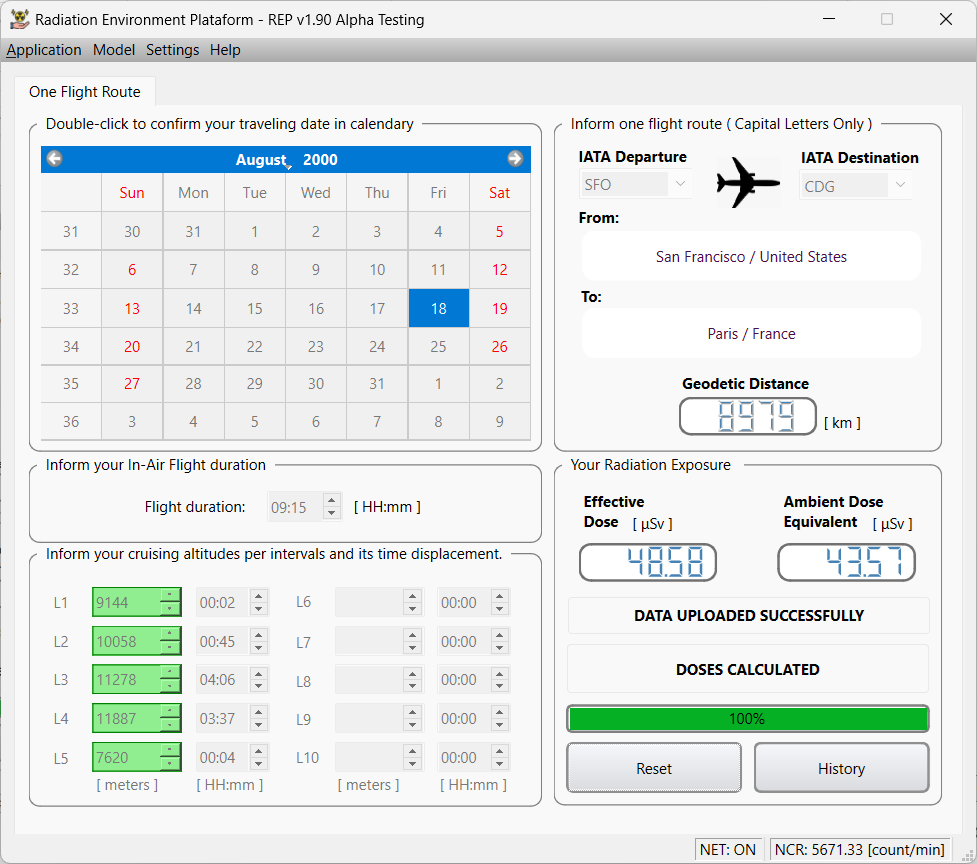

Image 2
(B) Solar Maximum
DOSE (μSv) SOLAR PERIOD REP 1.90 CARI-7A AVIDOS MAIRE PCAIRE SIEVERT JISCARD Mediana
Effective Minimum 72.36 - - - - - - -
H*(10) Minimum 64.83 - - - - - - -
Effective Maximum 48.58 - - - - - - -
H*(10) Maximum 43.57 - - - - - - -
Comparison of Codes Assessing Radiation Exposure

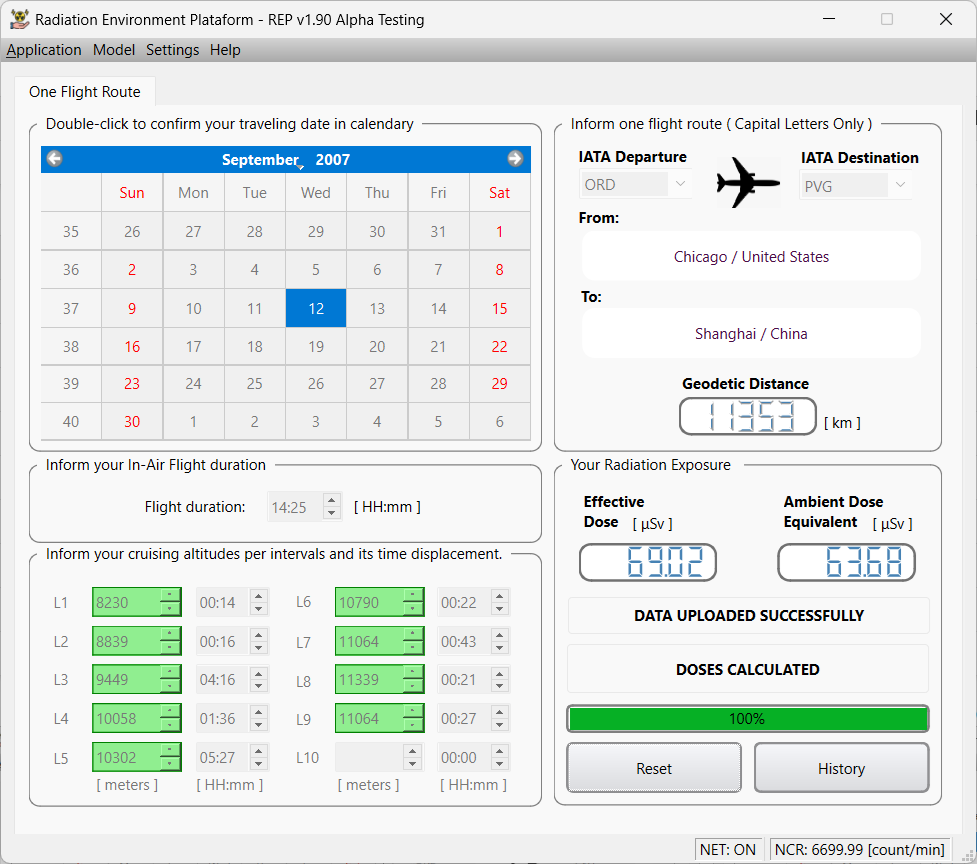

Flight 16: KORD to ZSPD / ORD to PVG

Route Distance (Km) TOC (Altitude) TOC (Time) TOD (Altitude) TOD (Start Time) TOD (End Time) TOD (Duration)
KORD to ZSPD 11353 270 00:19 363 14:01 14:25 00:24
Altitude (meters) Start Time End Time Total Duration
8230 00:19 00:33 14 minutes
8839 00:33 00:49 16 minutes
9449 00:49 05:05 4 hours 16 minutes
10058 05:05 06:41 1 hour 36 minutes
10302 06:41 12:08 5 hours 27 minutes
10790 12:08 12:30 22 minutes
11064 12:30 13:13 43 minutes
11339 13:13 13:34 21 minutes
11064 13:34 14:01 27 minutes
Image 1
(A) Solar Minimum

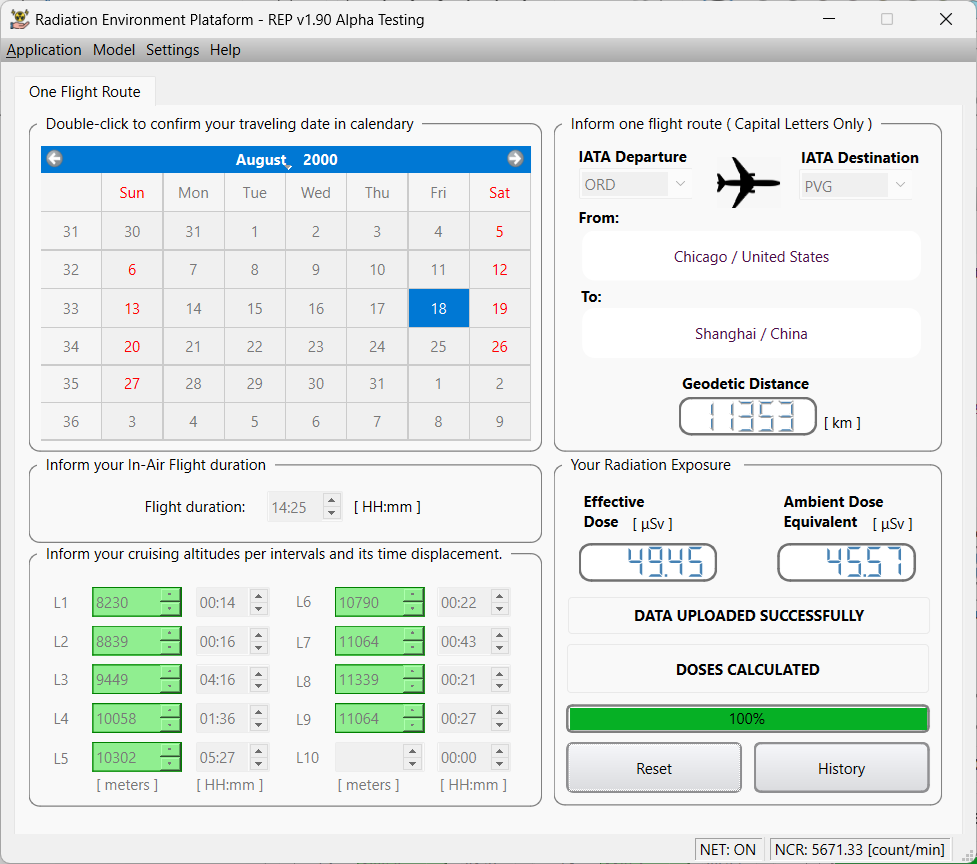

Image 2
(B) Solar Maximum
DOSE (μSv) SOLAR PERIOD REP 1.90 CARI-7A AVIDOS MAIRE PCAIRE SIEVERT JISCARD Mediana
Effective Minimum 69.02 - - - - - - -
H*(10) Minimum 63.68 - - - - - - -
Effective Maximum 49.45 - - - - - - -
H*(10) Maximum 45.57 - - - - - - -
Comparison of Codes Assessing Radiation Exposure

Flight 17: KORD to VHHH / ORD to HKG

Route Distance (Km) TOC (Altitude) TOC (Time) TOD (Altitude) TOD (Start Time) TOD (End Time) TOD (Duration)
KORD to VHHH 12539 270 00:21 372 15:03 15:24 00:21
Altitude (meters) Start Time End Time Total Duration
8230 00:21 00:34 13 minutes
8839 00:34 01:12 38 minutes
9449 01:12 05:17 4 hours 5 minutes
10058 05:17 05:43 26 minutes
10668 05:43 06:20 37 minutes
9388 06:20 07:48 1 hour 28 minutes
10302 07:48 12:04 4 hours 16 minutes
10790 12:04 12:27 23 minutes
11064 12:27 13:09 42 minutes
11339 13:09 15:03 1 hour 54 minutes

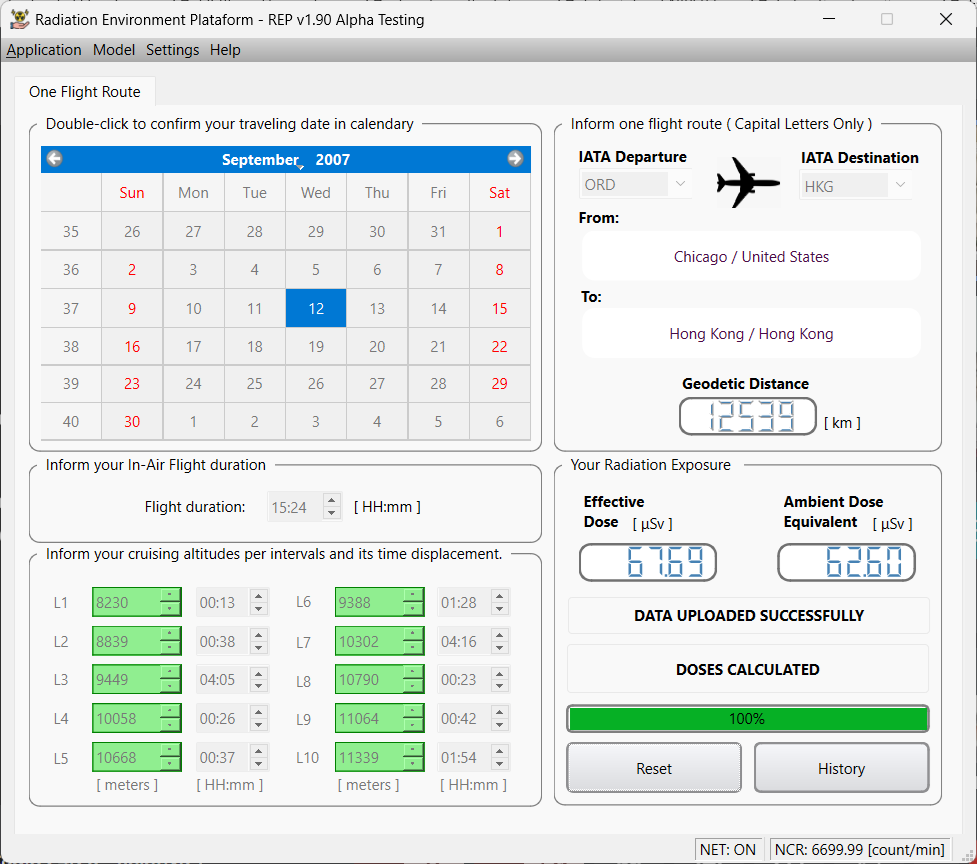

Image 1
(A) Solar Minimum

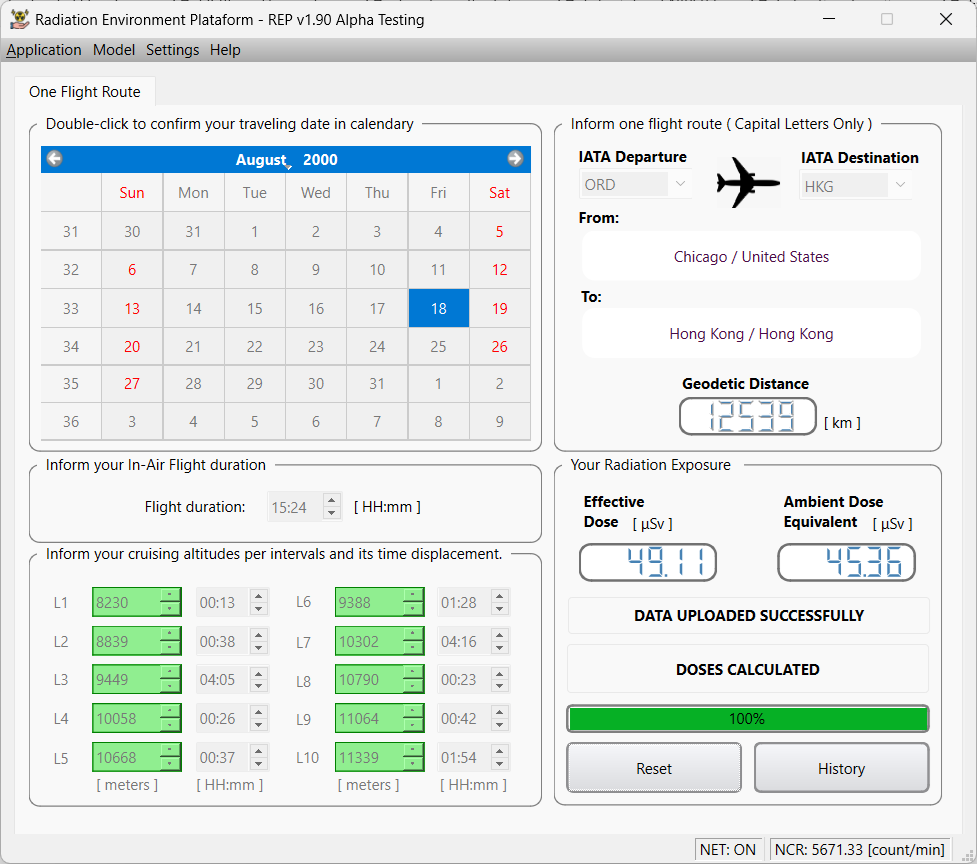

Image 2
(B) Solar Maximum
DOSE (μSv) SOLAR PERIOD REP 1.90 CARI-7A AVIDOS MAIRE PCAIRE SIEVERT JISCARD Mediana
Effective Minimum 67.69 - - - - - - -
H*(10) Minimum 62.60 - - - - - - -
Effective Maximum 49.11 - - - - - - -
H*(10) Maximum 45.36 - - - - - - -
Comparison of Codes Assessing Radiation Exposure

Flight 18: KORD to ZBAA / ORD to PEK

Route Distance (Km) TOC (Altitude) TOC (Time) TOD (Altitude) TOD (Start Time) TOD (End Time) TOD (Duration)
KORD to ZBAA 10586 290 00:18 363 12:49 13:11 00:22
Altitude (meters) Start Time End Time Total Duration
8839 00:18 00:37 19 minutes
9449 00:37 01:11 34 minutes
10058 01:11 05:04 3 hours 53 minutes
10668 05:04 06:20 1 hour 16 minutes
10302 06:20 12:10 5 hours 50 minutes
11339 12:10 12:30 20 minutes
11064 12:30 12:49 19 minutes
Image 1
(A) Solar Minimum

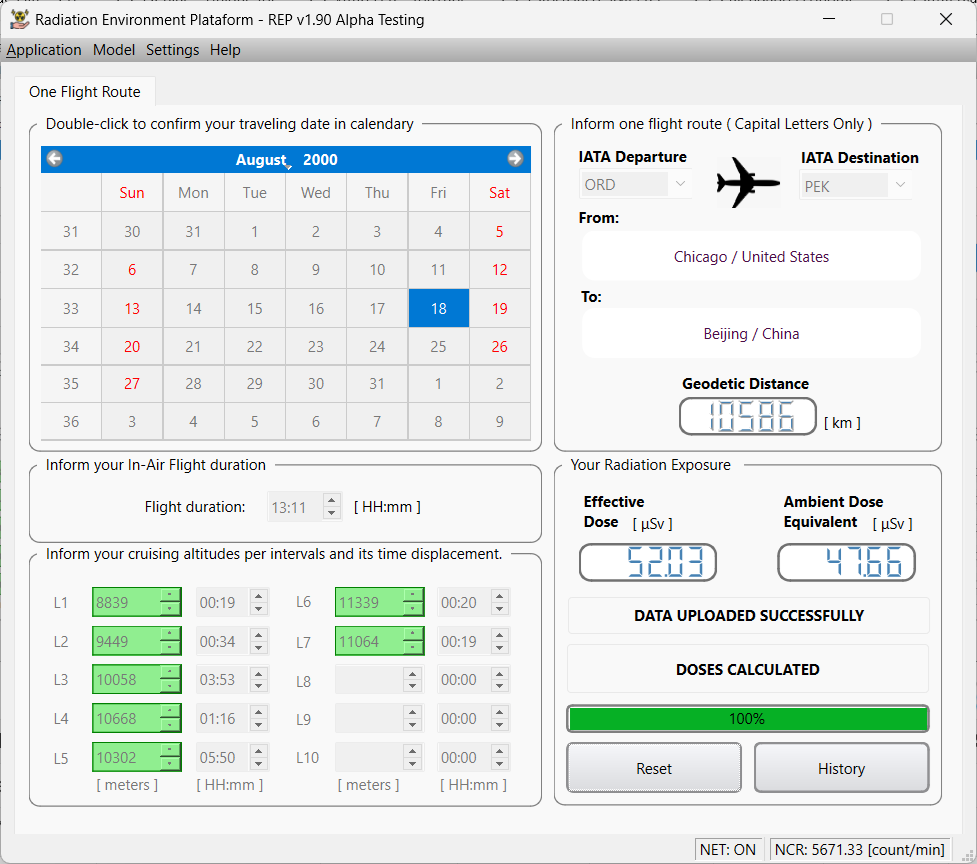

Image 2
(B) Solar Maximum
DOSE (μSv) SOLAR PERIOD REP 1.90 CARI-7A AVIDOS MAIRE PCAIRE SIEVERT JISCARD Mediana
Effective Minimum 74.87 - - - - - - -
H*(10) Minimum 68.69 - - - - - - -
Effective Maximum 52.03 - - - - - - -
H*(10) Maximum 47.66 - - - - - - -
Comparison of Codes Assessing Radiation Exposure

Flight 19: LFPG to KSFO / CDG to SFO

Route Distance (Km) TOC (Altitude) TOC (Time) TOD (Altitude) TOD (Start Time) TOD (End Time) TOD (Duration)
LFPG to KSFO 8979 310 00:34 390 11:12 11:38 00:26
Altitude (meters) Start Time End Time Total Duration
9449 00:34 01:37 1 hour 3 minutes
9754 01:37 03:11 1 hour 34 minutes
10363 03:11 05:22 2 hours 11 minutes
10973 05:22 08:39 3 hours 17 minutes
11582 08:39 11:07 2 hours 28 minutes
11887 11:07 11:12 5 minutes

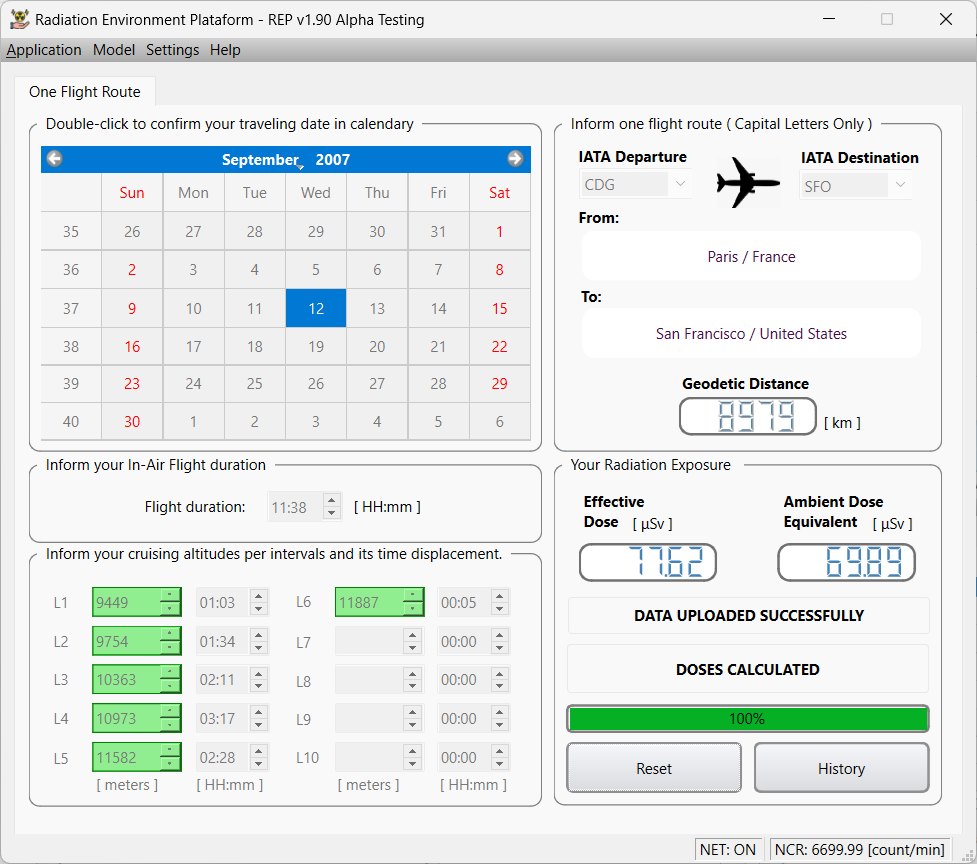

Image 1
(A) Solar Minimum

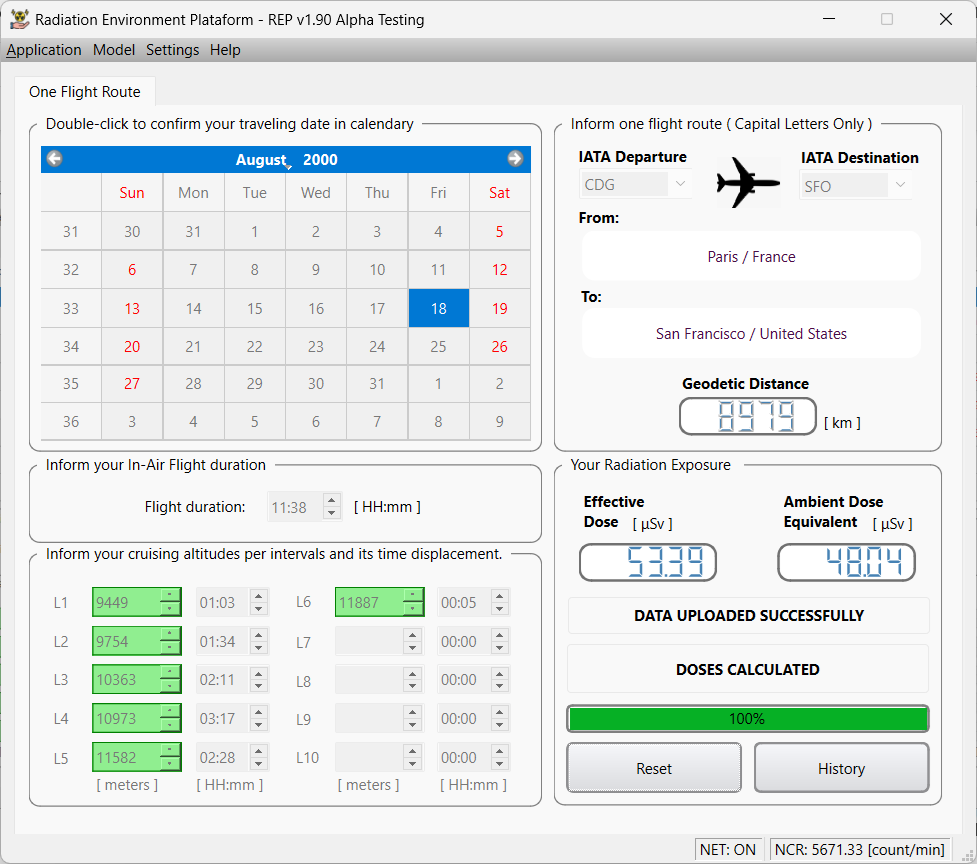

Image 2
(B) Solar Maximum
DOSE (μSv) SOLAR PERIOD REP 1.90 CARI-7A AVIDOS MAIRE PCAIRE SIEVERT JISCARD Mediana
Effective Minimum 77.62 - - - - - - -
H*(10) Minimum 69.89 - - - - - - -
Effective Maximum 53.39 - - - - - - -
H*(10) Maximum 48.04 - - - - - - -
Comparison of Codes Assessing Radiation Exposure

Flight 20: YSSY to FAJS / SYD to JNB

Route Distance (Km) TOC (Altitude) TOC (Time) TOD (Altitude) TOD (Start Time) TOD (End Time) TOD (Duration)
YSSY to FAJS 11029 300 00:18 370 13:21 13:45 00:24
Altitude (meters) Start Time End Time Total Duration
9144 00:18 02:00 1 hour 42 minutes
9449 02:00 04:55 2 hours 55 minutes
10668 04:55 08:42 3 hours 47 minutes
11278 08:42 12:30 3 hours 48 minutes
11887 12:30 12:45 15 minutes
10668 12:45 13:21 36 minutes

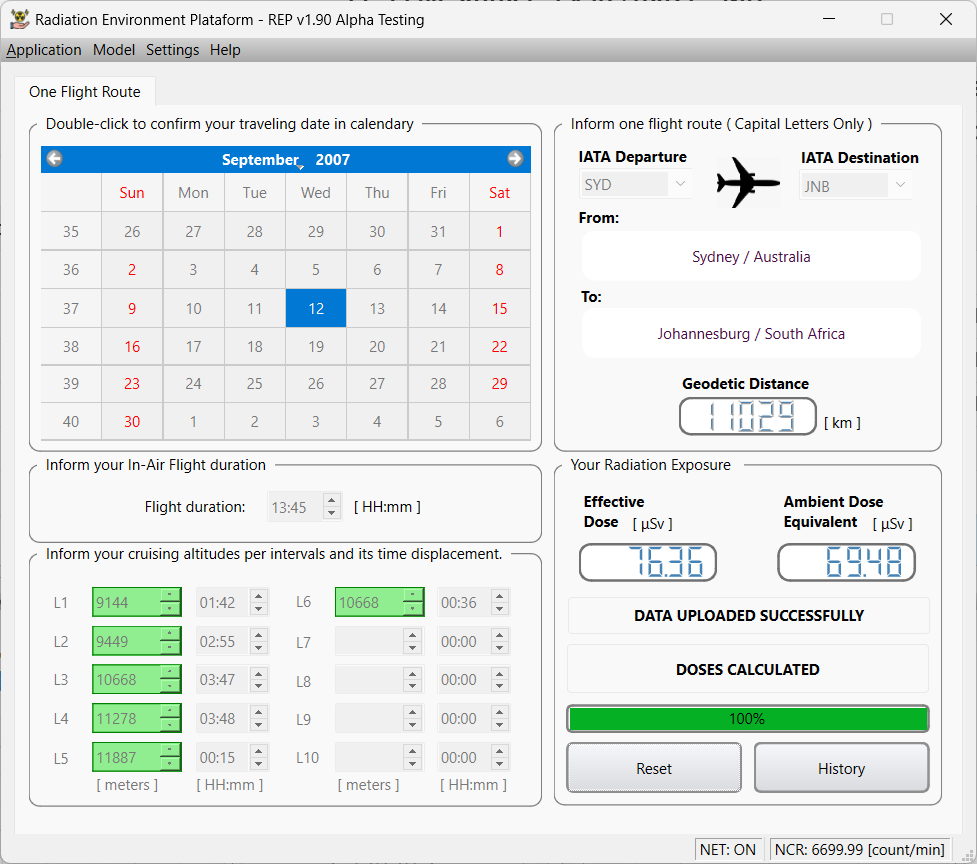

Image 1
(A) Solar Minimum

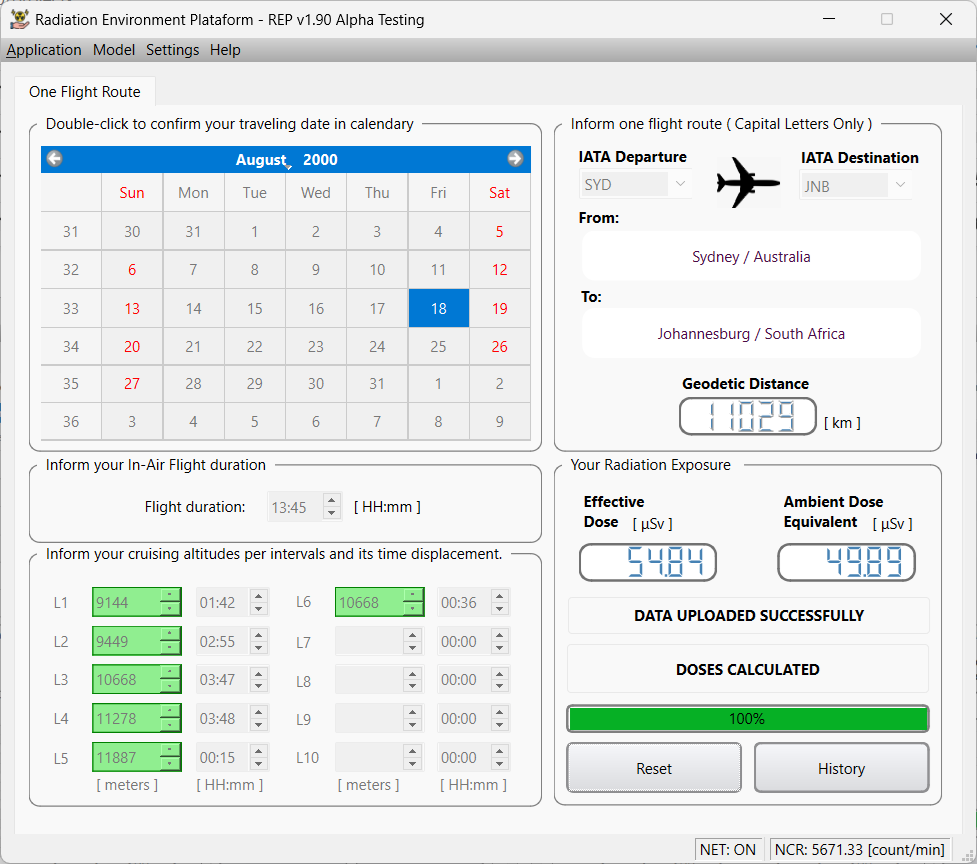

Image 2
(B) Solar Maximum
DOSE (μSv) SOLAR PERIOD REP 1.90 CARI-7A AVIDOS MAIRE PCAIRE SIEVERT JISCARD Mediana
Effective Minimum 76.36 - - - - - - -
H*(10) Minimum 69.48 - - - - - - -
Effective Maximum 54.84 - - - - - - -
H*(10) Maximum 49.89 - - - - - - -
Comparison of Codes Assessing Radiation Exposure

Flight 21: OMDB to KIAH / DXB to IAH

Route Distance (Km) TOC (Altitude) TOC (Time) TOD (Altitude) TOD (Start Time) TOD (End Time) TOD (Duration)
OMDB to KIAH 13136 300 00:17 380 15:09 15:36 00:27
Altitude (meters) Start Time End Time Total Duration
9144 00:17 02:08 1 hour 51 minutes
9754 02:08 07:39 5 hours 31 minutes
10058 07:39 09:48 2 hours 9 minutes
10973 09:48 13:40 3 hours 52 minutes
11582 13:40 15:09 1 hour 29 minutes
Image 1
(A) Solar Minimum
Image 2
(B) Solar Maximum
DOSE (μSv) SOLAR PERIOD REP 1.90 CARI-7A AVIDOS MAIRE PCAIRE SIEVERT JISCARD Mediana
Effective Minimum 83.92 - - - - - - -
H*(10) Minimum 76.01 - - - - - - -
Effective Maximum 60.08 - - - - - - -
H*(10) Maximum 54.46 - - - - - - -
Comparison of Codes Assessing Radiation Exposure

Flight 22: YSSY to FAJS / SYD to JNB

Route Distance (Km) TOC (Altitude) TOC (Time) TOD (Altitude) TOD (Start Time) TOD (End Time) TOD (Duration)
YSSY to FAJS 11029 300 00:23 390 13:23 13:51 00:28
Altitude (meters) Start Time End Time Total Duration
9144 00:23 02:11 1 hour 48 minutes
9449 02:11 05:31 3 hours 20 minutes
10668 05:31 07:01 1 hour 30 minutes
11278 07:01 11:31 4 hours 30 minutes
11887 11:31 13:23 1 hour 52 minutes
Image 1
(A) Solar Minimum
Image 2
(B) Solar Maximum
DOSE (μSv) SOLAR PERIOD REP 1.90 CARI-7A AVIDOS MAIRE PCAIRE SIEVERT JISCARD Mediana
Effective Minimum 80.44 - - - - - - -
H*(10) Minimum 72.74 - - - - - - -
Effective Maximum 57.67 - - - - - - -
H*(10) Maximum 52.15 - - - - - - -
Comparison of Codes Assessing Radiation Exposure

Flight 23: WSSS to KEWR / SIN to EWR

Route Distance (Km) TOC (Altitude) TOC (Time) TOD (Altitude) TOD (Start Time) TOD (End Time) TOD (Duration)
WSSS to KEWR 15344 300 00:26 410 16:32 17:21 00:49
Altitude (meters) Start Time End Time Total Duration
9144 00:26 01:22 56 minutes
9754 01:22 01:52 30 minutes
10363 01:52 03:45 1 hour 53 minutes
10668 03:45 07:57 4 hours 12 minutes
10363 07:57 11:23 3 hours 26 minutes
11887 11:23 13:49 2 hours 26 minutes
12497 13:49 16:32 2 hours 43 minutes

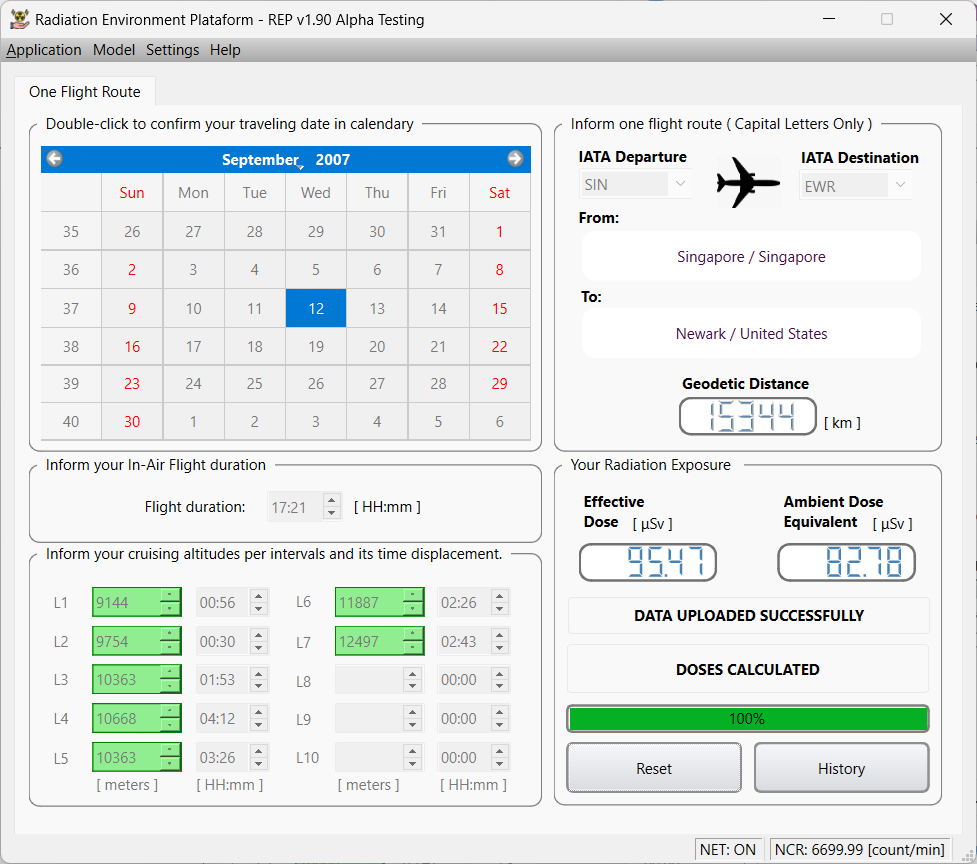

Image 1
(A) Solar Minimum

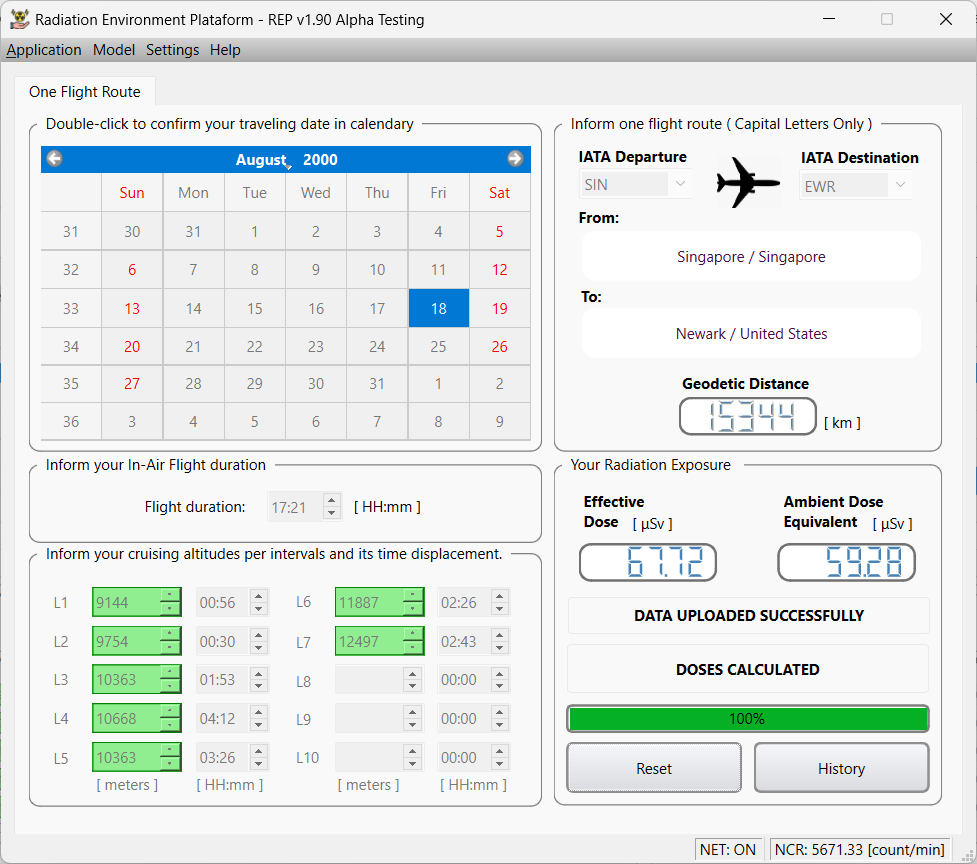

Image 2
(B) Solar Maximum
DOSE (μSv) SOLAR PERIOD REP 1.90 CARI-7A AVIDOS MAIRE PCAIRE SIEVERT JISCARD Mediana
Effective Minimum 95.47 - - - - - - -
H*(10) Minimum 82.78 - - - - - - -
Effective Maximum 67.72 - - - - - - -
H*(10) Maximum 59.28 - - - - - - -
Comparison of Codes Assessing Radiation Exposure
